INSTALLATION

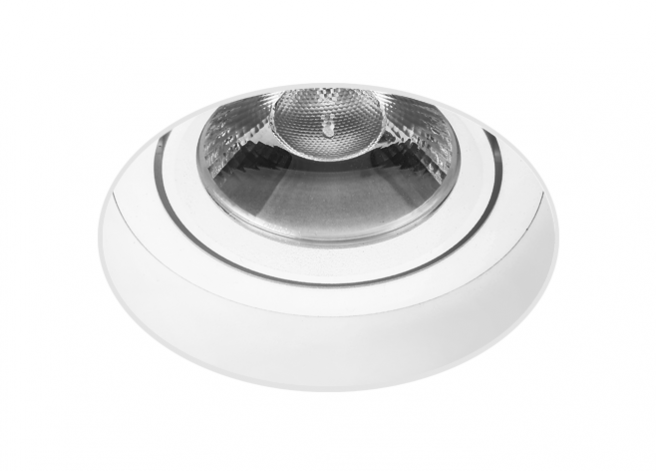

DOWN LIGHT

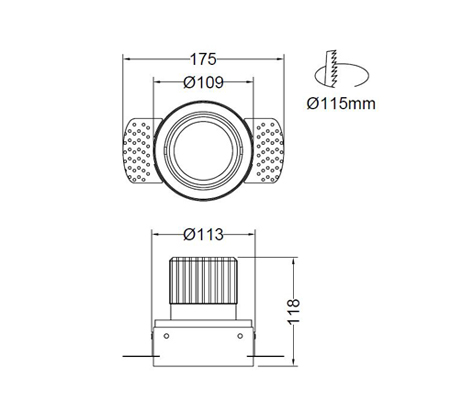

SIZE
Ø175 x H118mm
CUT HOLE
Ø115mm
POWER
8W, 10W, 15W, 20W
CCT
3000K, 4000K, 5000K
BEAM ANGLE
30˚
CRI
80↑
FINISH COLOR
WHITE (Custom : BLACK)
BODY MATERIAL
AL Die-Casting
REFLECTOR
PC, LENS(PMMA)
COVER
PC
INPUT VOLTAGE
AC 220V / 50~60Hz
OUTPUT VOLTAGE
DC 36V
POWER FACTOR
90↑
IP RATING
20
OPERATING TEMPERATURE
-20 to +40℃
ETC
Dali, 0-10, 1-10, Triac Dimming
