INSTALLATION

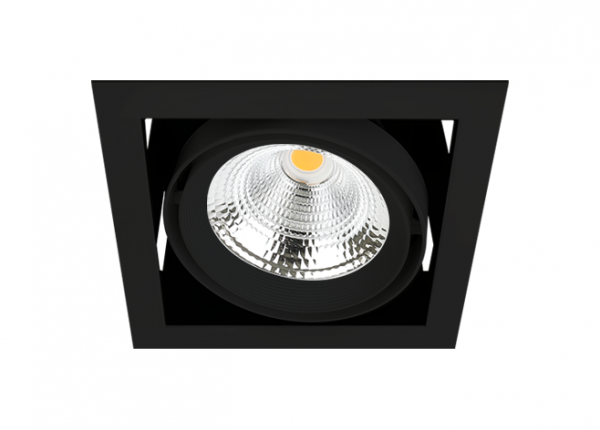

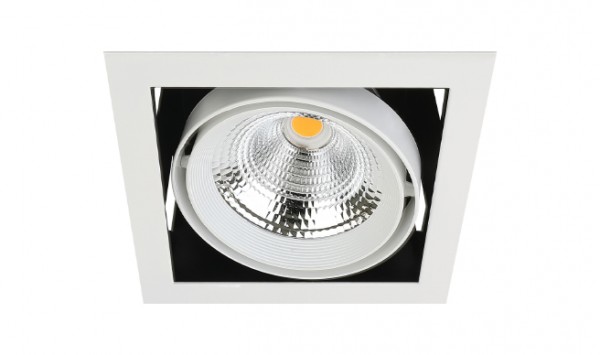

MULTI DOWN LIGHT

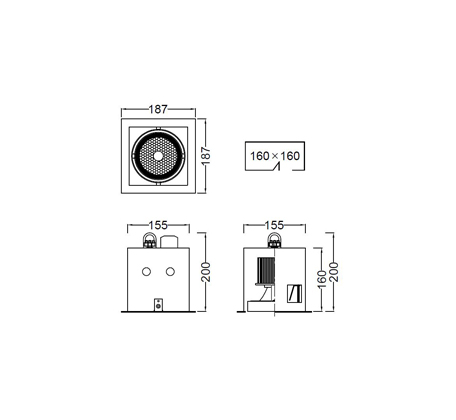

SIZE
W187 x D187 x H200mm
CUT HOLE
160 x 160mm
POWER
10W, 15W, 20W, 25W, 30W, 35W, 40W
CCT
2700K, 3000K, 3500K, 4000K, 5000K, 5700K
BEAM ANGLE
20˚ / 40˚ / 60˚
CRI
80↑
FINISH COLOR
WHITE / BLACK
BODY MATERIAL
Steel
REFLECTOR
PC
COVER
PC
INPUT VOLTAGE
AC 220V / 50~60Hz
OUTPUT VOLTAGE
DC 36V
POWER FACTOR
90↑
IP RATING
20
OPERATING TEMPERATURE
-20 to +40℃
ETC
Dali, 0-10, 1-10, Triac Dimming
