INSTALLATION

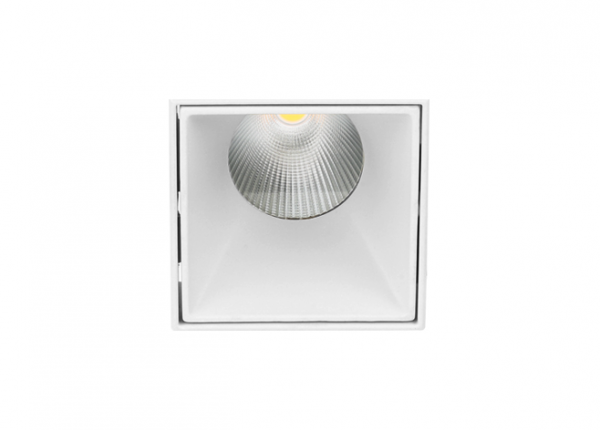

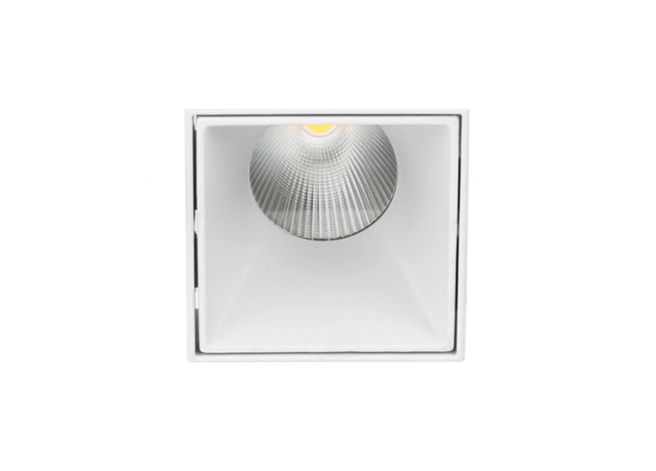

TRIMLESS DOWN LIGHT

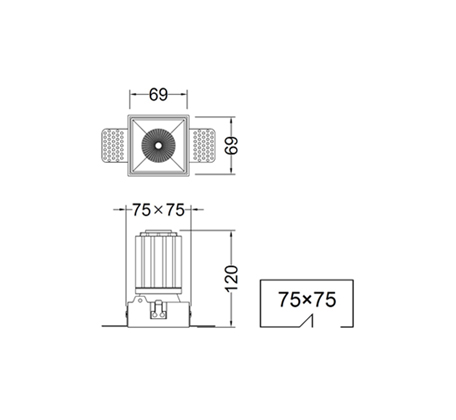

SIZE
W69 x D69 x H120mm
CUT HOLE
75 x 75mm
POWER
8W, 10W
CCT
2700K, 3000K, 3500K, 4000K, 5000K, 5700K
BEAM ANGLE
24˚
CRI
80↑
FINISH COLOR
WHITE (Custom : BLACK)
BODY MATERIAL
AL Die-Casting
REFLECTOR
PC
COVER
PC
INPUT VOLTAGE
AC 220V / 50~60Hz
OUTPUT VOLTAGE
DC 36V
POWER FACTOR
90↑
IP RATING
20
OPERATING TEMPERATURE
-20 to +40℃
OPTION
Moisture Protection, Honey Comb
ETC
Dali, 0-10, 1-10, Triac Dimming
