INSTALLATION
DOWN LIGHT

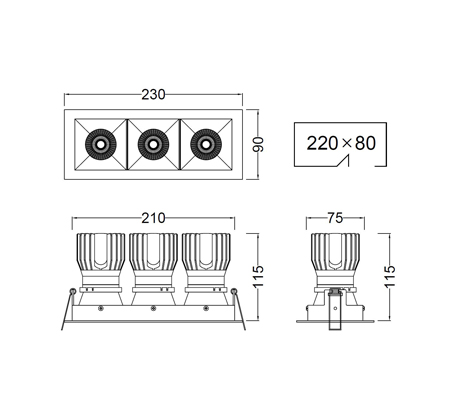

SIZE
W230 x D90 x Height by wattage
CUT HOLE
220 x 80mm
POWER
10W, 15W, 20W, 25W, 30W
CCT
3000K, 4000K, 5000K
BEAM ANGLE
15˚ / 24˚ / 36˚ / 55˚
CRI
80↑
FINISH COLOR
WHITE / BLACK
BODY MATERIAL
Steel
REFLECTOR
PC
COVER
PC
INPUT VOLTAGE
AC 220V / 50~60Hz
OUTPUT VOLTAGE
DC 36V
POWER FACTOR
90↑
IP RATING
20
OPERATING TEMPERATURE
-20 to +40℃
ETC
Dali, 0-10, 1-10, Triac Dimming
