INSTALLATION

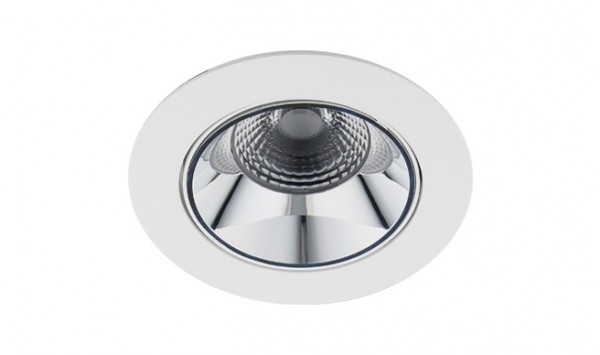

DOWN LIGHT
SIZE
Ø125 x H128mm
CUT HOLE
Ø110mm
POWER
8W, 10W, 15W, 20W, 25W, 30W
CCT
2700K, 3000K, 3500K, 4000K, 5000K, 5700K
BEAM ANGLE
36˚
CRI
≤80, ≤90
FINISH COLOR
WHTIE
BODY MATERIAL
AL-DIE CASTING
REFLECTOR
PC
COVER
LENS(PMMA)
INPUT VOLTAGE
AC 220V, 50~60Hz
OUTPUT VOLTAGE
DC36V
POWER FACTOR
≤90
IP RATING
20
OPERATING TEMPERATURE
-20 to +40℃
ETC
TRIAC DIM, DALI DIM, 0-10/1-10V DIM, BLUETOOTH DIM
